SUMO - Color picker

Color picker is a basic tool to select / mix colors for e.g. feature / condition groups in SUMO's Heatmap Viewer:

SUMO's ColorPicker tool is an extension of a tool by Roy M Klever

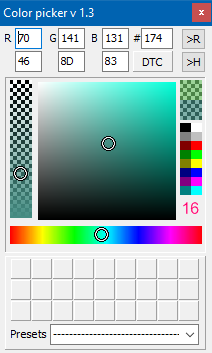

Move the rings in the top color panels to adjust the color:

the lower spectrum bar to select the base color (HUE)
middle panel to adjust brigth-/dimness of the base color
left panel to adjust transparency
right panel to select basic standard Windows color
Click the =>16 button to generae 16 shades of the just selected ciolor

Text boxes on top show color values numerically

Decimal RGB values in top row
Hexa-decimal values in second row
Values are continuously updated while changing colors

You may paste/type numerical values (0..255) into the text fields to define a color.

Click the =>R button to copy the present color to clipboard as RGB triple (e.g. "rgb(151,61,240)").
Click the =>H button to copy the present color to clipboard as HTML RGB triple (e.g. "color="#973DF0"").

Close the dialog, to pass the selected Color/Alpha/Palette to the calling application.

Capture a desktop color

Click the DTC button.
Move the mouse anywhere on the desktop.
Continuously, the desktop color at the tip of the mouse pointer is read and shown in ColorPicker.
DTC button shows the presently captured color as well as the text boxes showing numerical RGB-values.
Click ESC-key to freeze color capturing.

Custom color presets

The 29 panels at the bottom of the dialog may be used to store your custom color preferences.
Double click (left mouse button) to assign the presently set color - either manually adjusted ot desktop captured - to the respective panel.

In "desktop capture color" mode, press "A" key (= add). The desktop color at the mouse tip is assigned to a custum color panel.
After each "Add" the next panel is activated to retieve a new captured color. Left - right, top - down. When last panel is reached, next color is assigned to first panel, ...
Before "adding" of DCT colors, click any of the custom colors panels as start.

Manage your presets

ColorPicker can hold up to 10 custom presets (+ 4 default presets).
Use the combo-box Preset to color panels or manage your presets.

On top your custom presets - up to ten.
Four default presets (Cold/Warm/Light/Strong)

Commands to manage presets:

Command	Action
Add present settings as preset	Add the colors defined for the 27 custom color panels as preset. Define a name for this preset. Up to ten presets may be definded and are memorized for next use of *ColorPicker*
Clear preset panels	Set all panels to neutral bright gray
Remove SINGLE preset	Remove any of your custom defined presets. A dialog opens up. From the drop down list, select the preset you want to remove.
Remove ALL presets	Usefule if you want to redefine all presets.
Copy presets as list of RGB-triples	The actually preset (color as indicated by the color panels) are copied to clipboard as semicolo-separated list of color triples. E.g.: "149,201,255;148,214,209;161,232,247;133,211,106;..."
Paste list of RGB triples	Take a color-triple list from clipboard and assign it to the custom color panels. List should contain multiple color triples (RGB) separated by semi-colon (";" ) or in multiple lines. If you copy/paste too few (<27) triples, remaining custom color panels remain unchanged. If you copy/paste too many (>27) triples, superficial triples are ignored.
Export presets	Save all presets as text file
Import presets	Load preset from a (previously saved) text file. If you try to load a non-compatible file format, most probably nothing will happen.
